Battery Basics Pt 1: The three parts of a bike’s electrical system
A motorcycle’s electrical system might seem complex, but at its core, three main components work together to keep it running: the battery, alternator, and rectifier. Each plays a crucial role in providing the power needed for everything, from starting the engine to illuminating the headlights. We asked the battery saving experts at OptiMate to explain the basics of a motorcycle’s electrical system.
1. The Battery
Think of the battery as a reservoir for the motorcycle’s electrical system. It stores direct current (DC) and provides power when the engine is off or when the electrical demands exceed the alternator’s output.
Modern motorcycles typically use two main battery types:
- Lead-Acid: This is the traditional choice, known for its affordability and durability. Lead-acid batteries rely on a chemical reaction between lead plates and sulfuric acid to generate electricity. They are relatively inexpensive and can withstand vibrations well, making them suitable for motorcycles. There are several different varieties of lead-acid battery, starting with ‘wet’ (which need topping up with distilled water regularly) and Maintenance Free (MF), which don’t. Absorbent Glass Mat (AGM) and Gel are both ‘maintenance free’ although they all require some care.
- Lithium: Offering a lighter weight and longer lifespan, lithium batteries are becoming increasingly popular and some bikes now come with them fitted as standard, (e.g. BMW R1300 GS). They offer a high cranking power for their size and weight, making them ideal for motorcycles, where space is at a premium. However, lithium batteries come at a higher cost, require a compatible charging system, and are more susceptible to damage if they’re not cared for properly. Once deeply discharged they can be difficult to recover.
2. The Alternator – on charge
The alternator acts like a mini power plant for your motorcycle. As the engine runs, the alternator spins a rotor with magnets inside it. This rotation creates an alternating current (AC) in the surrounding stator coils. In essence, the alternator converts the mechanical energy of the engine into electrical energy.
3. The Rectifier – AC/DC
The AC current generated by the alternator cannot be directly stored in the battery, which requires DC (direct current). This is where the rectifier comes in. It converts the AC current from the alternator into DC, which can then be stored in the battery and used by the electrical system. Modern rectifiers often include a regulator to maintain the correct voltage level, preventing overcharging or undercharging the battery.
How all three work together
During operation, the battery provides the initial cranking power to start the engine. Once running, the alternator takes over, supplying power to the electrical system and charging the battery. The rectifier ensures the AC current from the alternator is converted to DC for both uses.
Understanding these three components provides a basic foundation in how a motorcycle’s electrical system works. Get your head around that, and it makes understanding and diagnosing faults with it much easier.

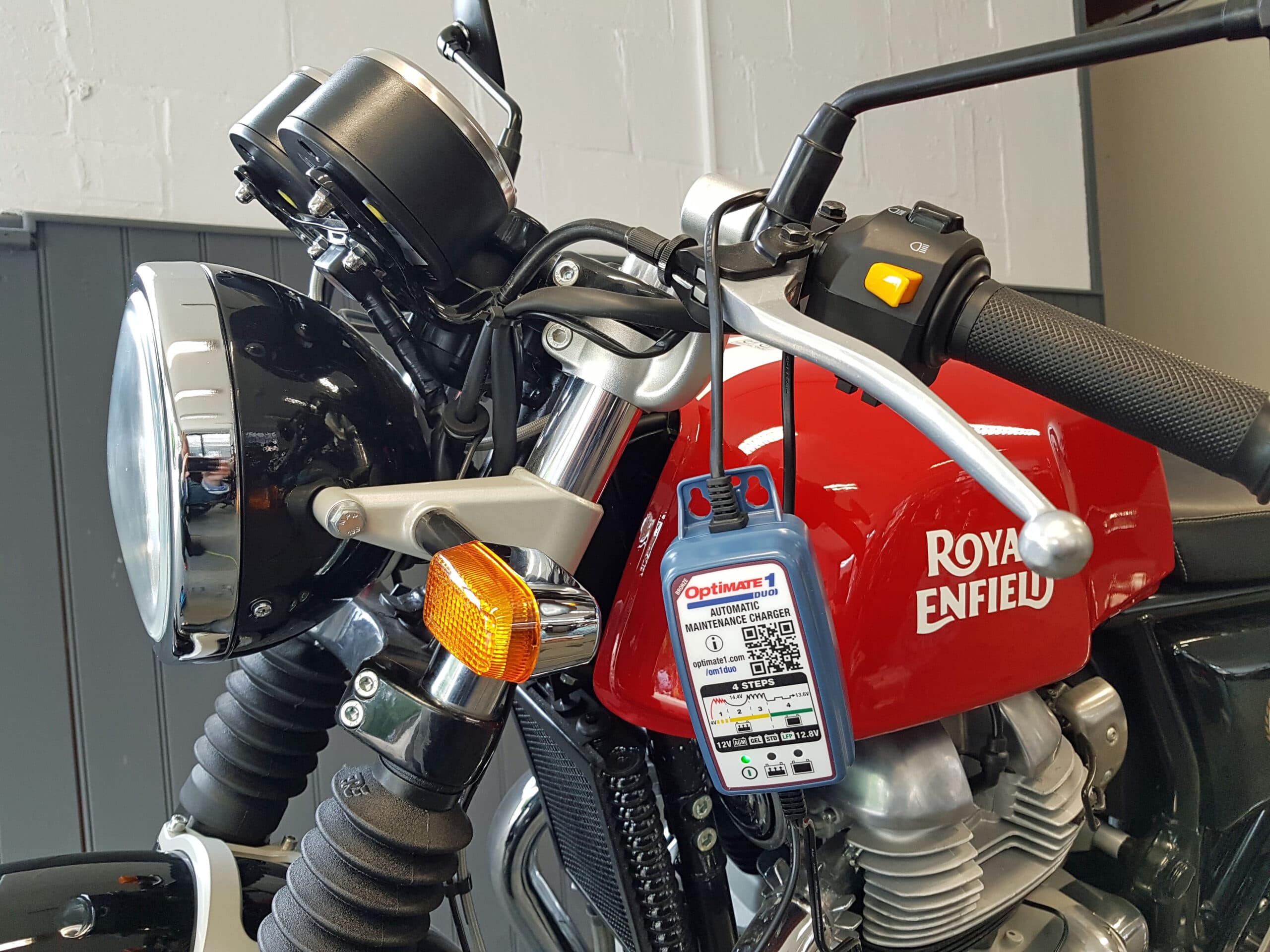

Connecting to a charger/maintainer, like the OptiMate 1 Duo, will keep your battery in peak condition and help avoid any potential problems before they materialise. Intelligent and automatic, it works with both lead-acid or lithium and selects the charging program to suit – so you don’t have to.
In Part 2, we’ll cover the basics of fault diagnosis and what to do (and what not to) if your battery is flat.
